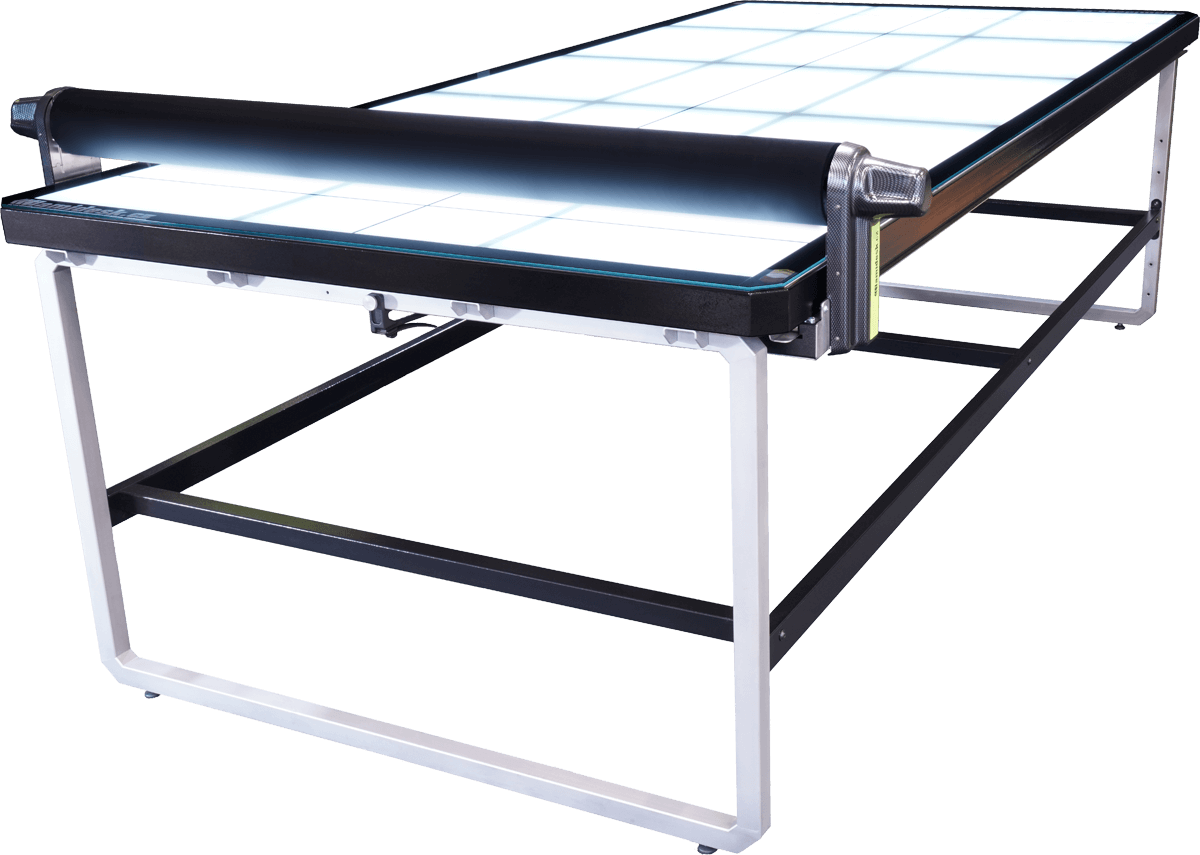

Space saver · flatbed applicator
Compact CL 2019.
Made for small workshops.

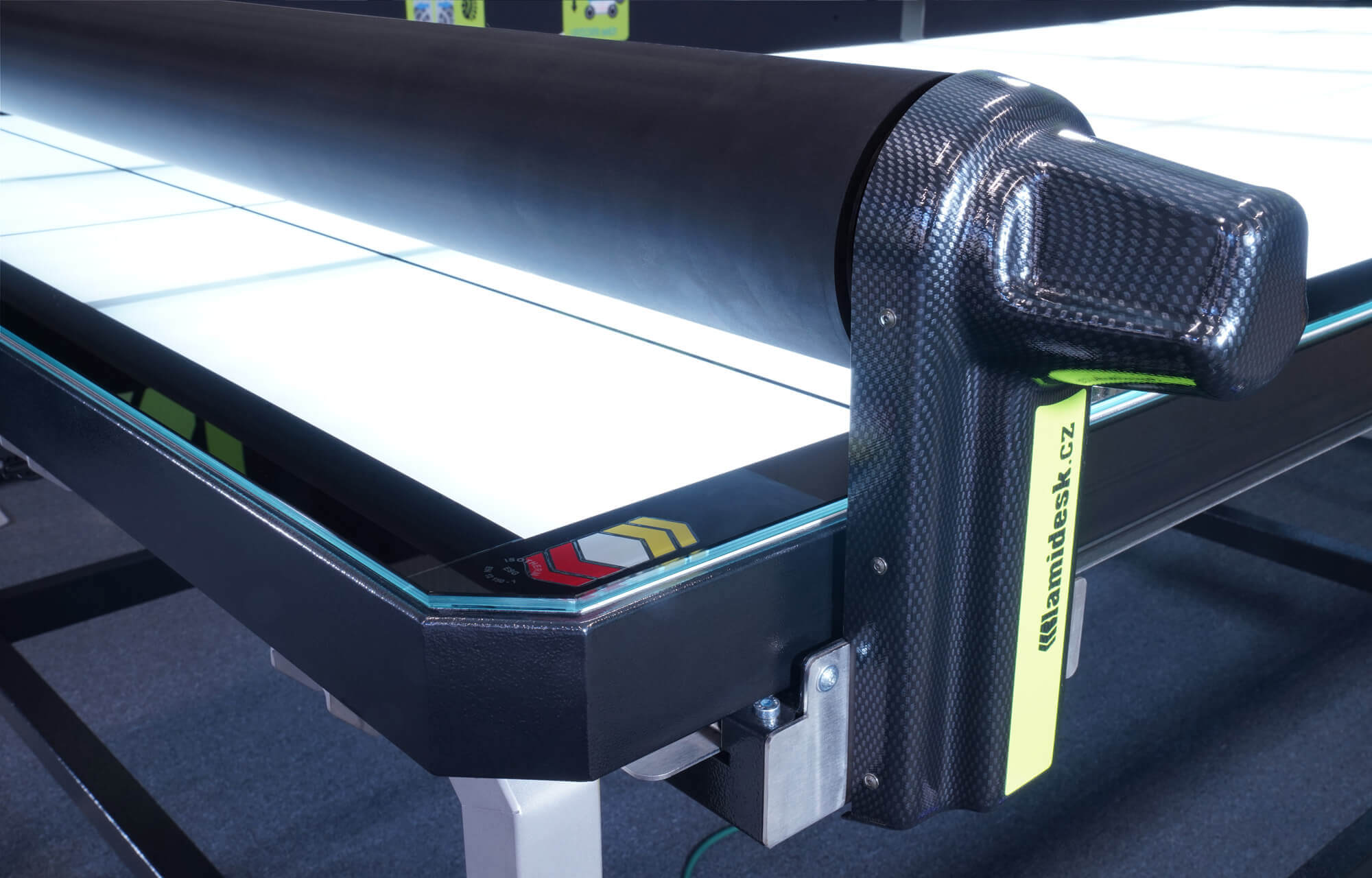

Carbon fibre cover, brushed stainless steel parts, covered linear guide, end-position hydraulics and shock absorbers. Motor and LED backlight available.
01 — Highlights
Premium build in a compact footprint.
- Carbon fibre cover design
- Brushed stainless steel parts
- Covered linear guide
- End-position hydraulics and shock absorbers
- Motor and LED backlight available
02 — Motor drive
Optional motor drive set.
A powerful motor gives your applicator another dimension: efficiency. We have a decade of experience with motorised machines, and our customers appreciate the ease of use, rapid application and excellent results.
The motor set can be added to any Compact CL 2019 at any time, by the user, in only a few minutes.
Motor + flatbed applicator = more speed, ease of use and great results.

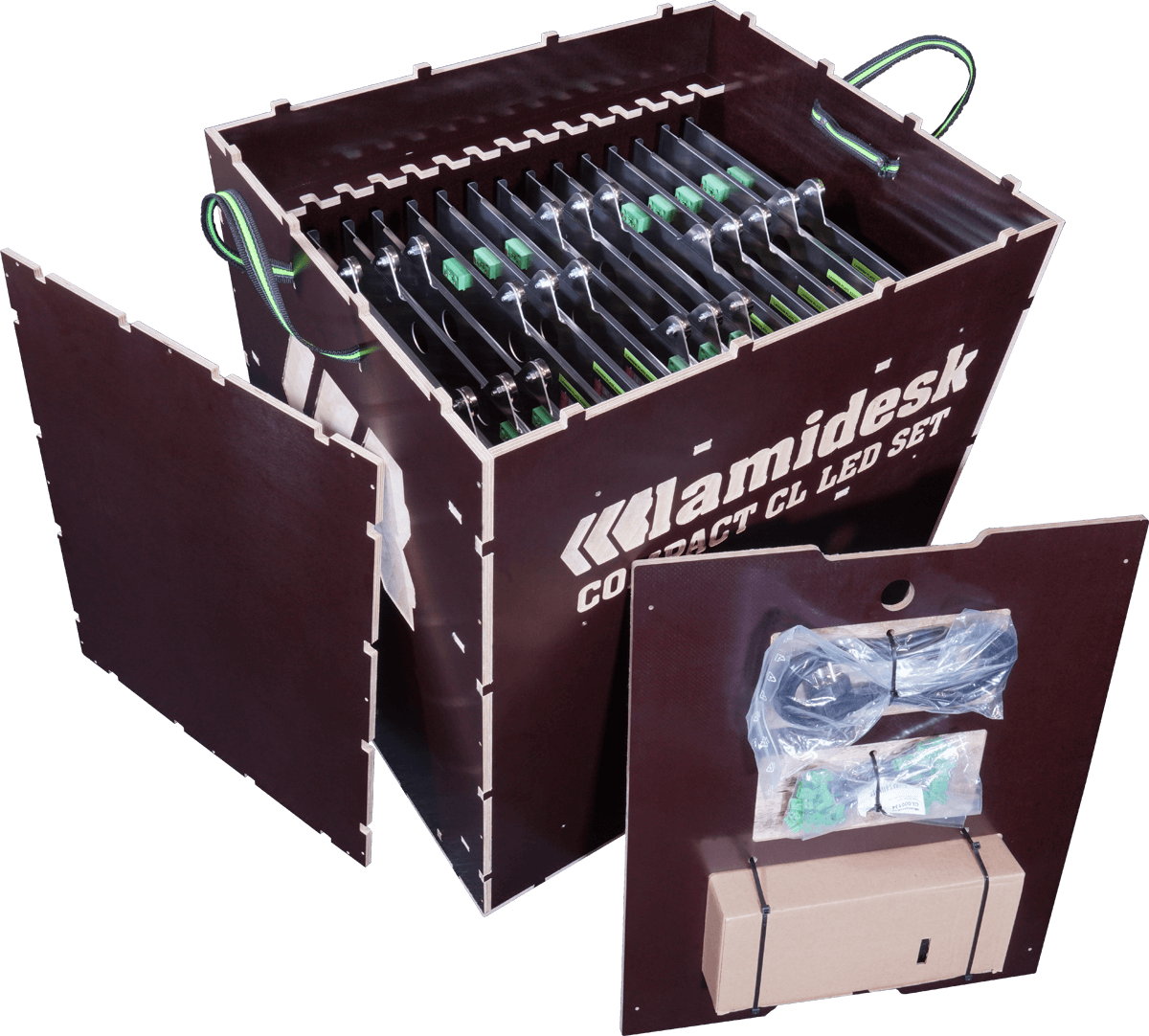

03 — LED backlight
280 W of light, no tools needed.
The backlight set can be added to any Compact CL 2019 at any time, by the user, in only a few minutes. It takes the stress out of the alignment process.
- 15 aluminium LED plates with magnetic holders – click-in / click-out
- All connection wiring included
- MeanWell power supply 280 W / 24 V
04 — Engineering
Details that make the difference.

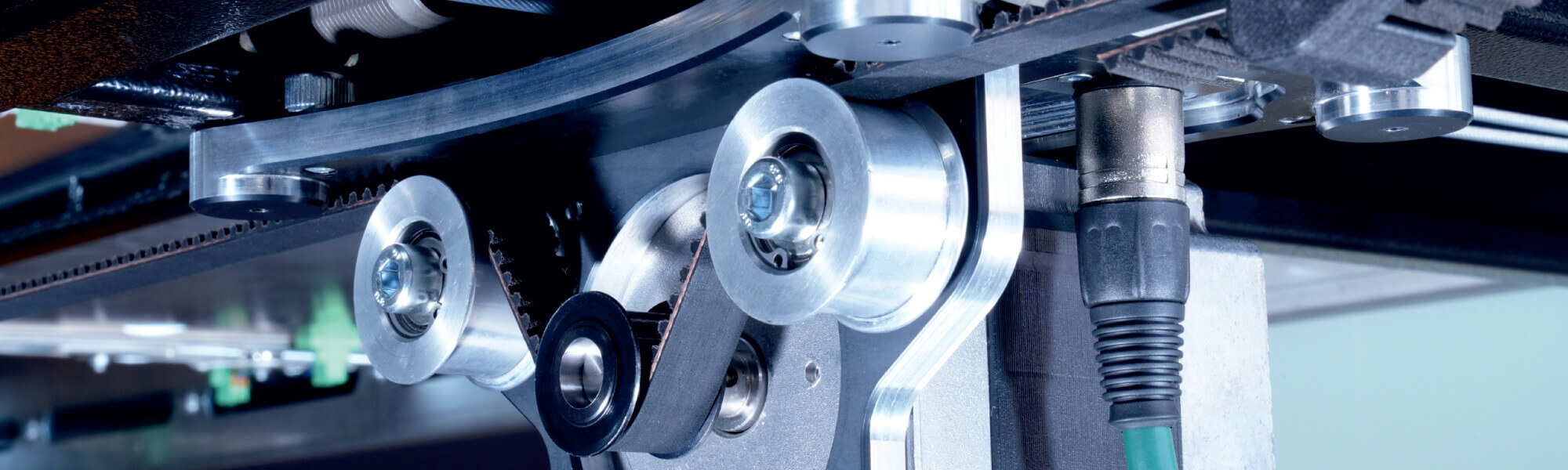

Precision guide, fits perfectly
Each pulley contains two precision bearings in a protective housing – no single bearings rolling on the guide surface. Amazing durability, extreme accuracy, longer machine life.
Application roller from Germany
CNC-brushed, German rubber and German precision. Alcohol, oil and abrasion resistant for an excellent lifespan and simple maintenance.

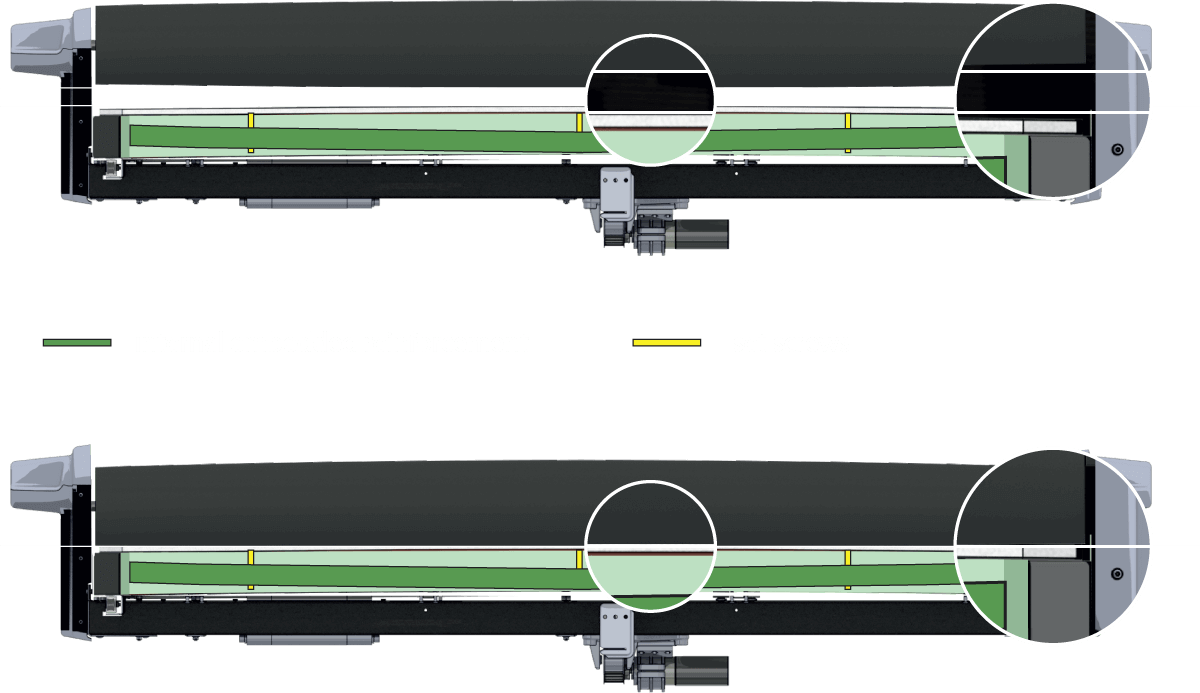

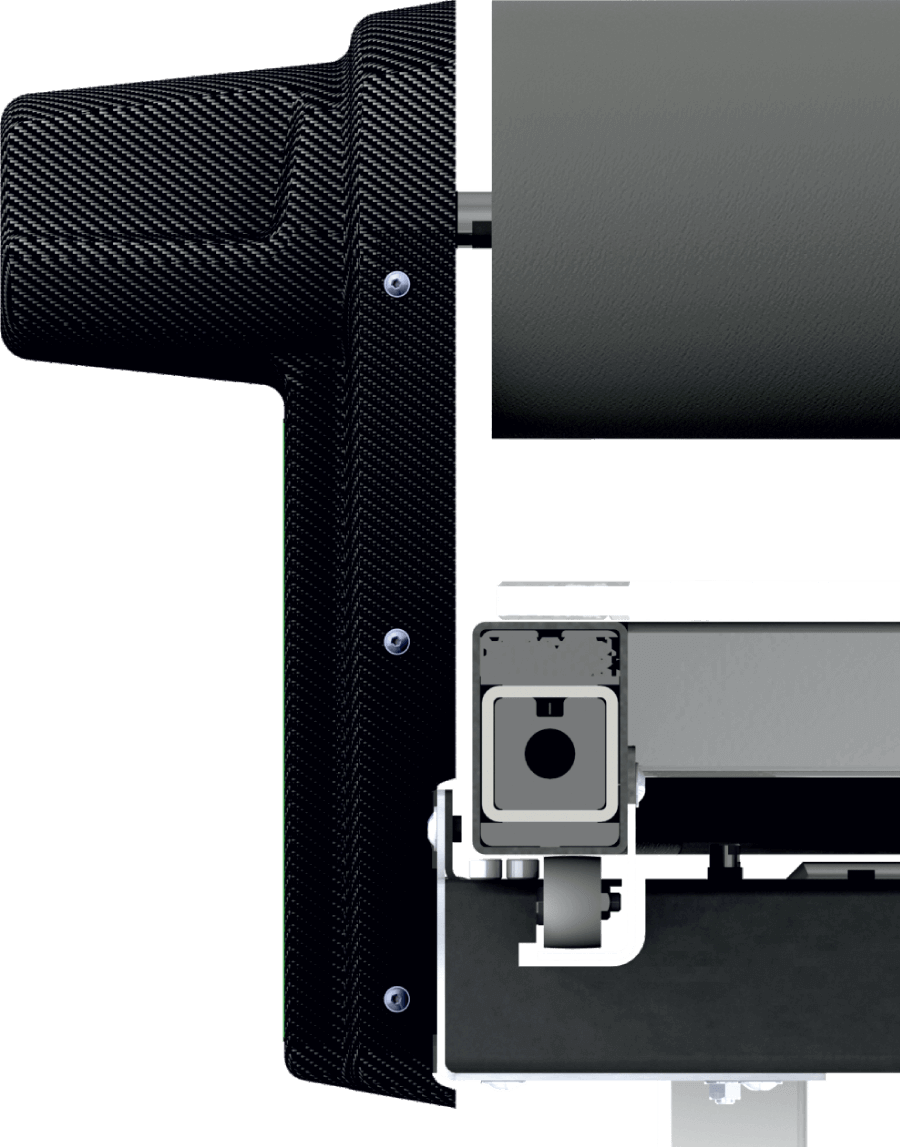

Convex table & CNC-brushed convex roller
Perfectly flat when the roller is lowered. Two internally embedded beams (patent pending) give the table incredible reliability and stability.
Folding legs
Quick initial assembly; move the Compact from one room to another in minutes. Optional shelves fit the pre-threaded mounting points.

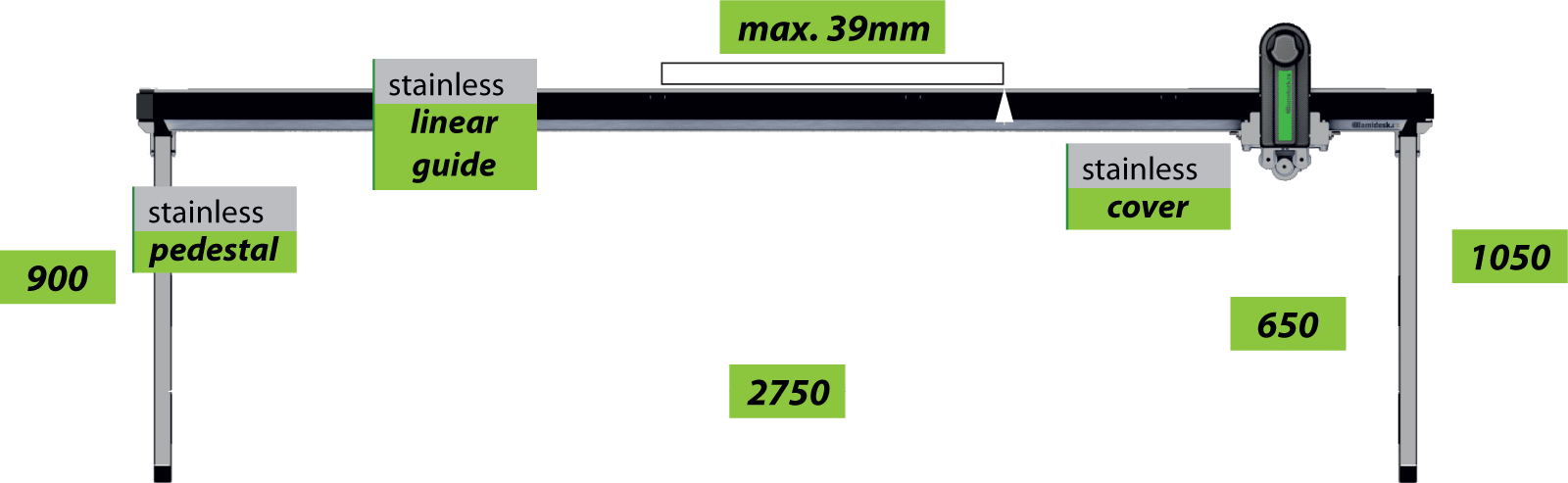

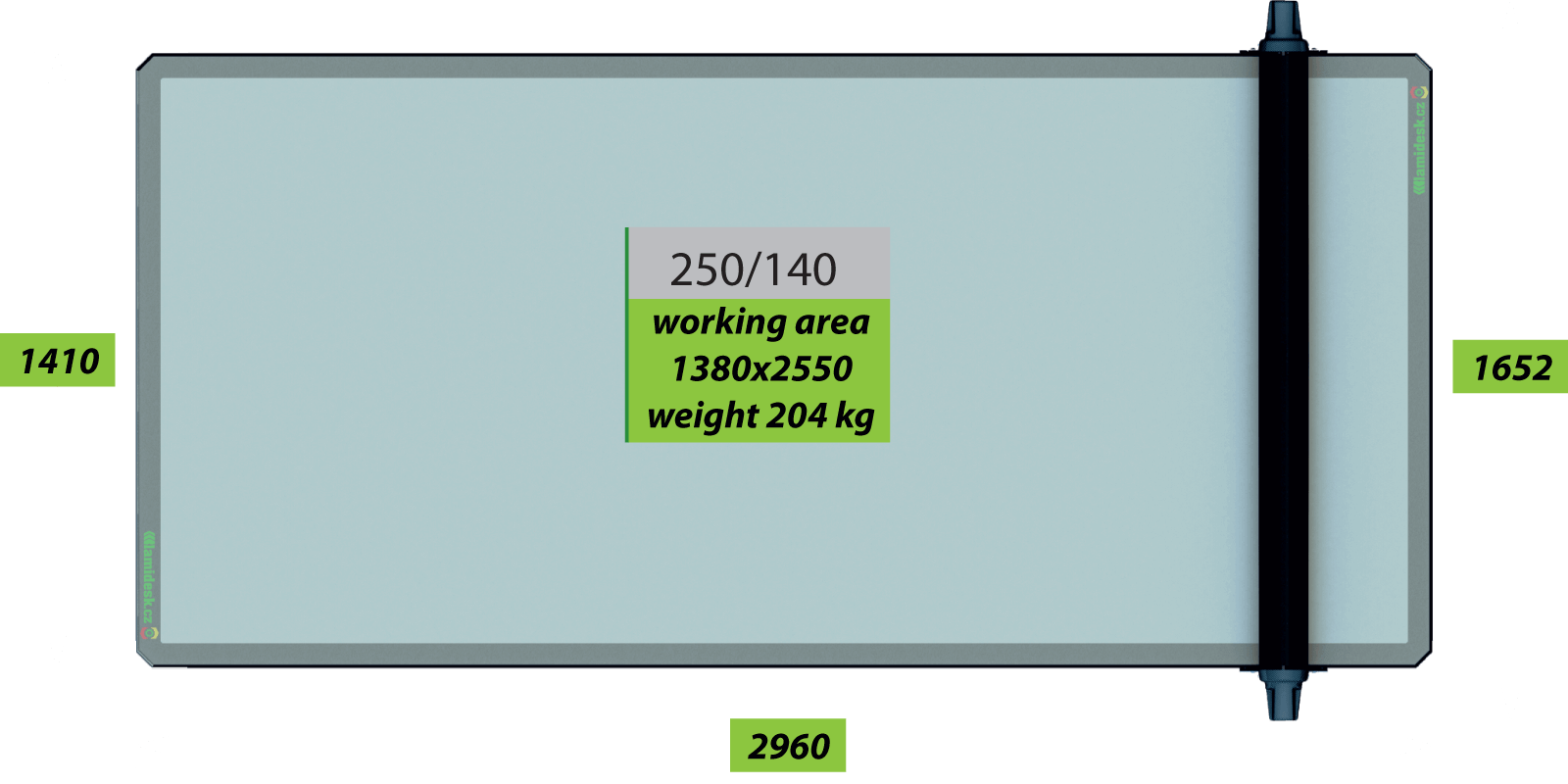

05 — Dimensions
Fits where others don’t.
| Model | 250/140 |
|---|---|
| Working area | 1380 × 2550 mm |
| Footprint | 2960 × 1410 mm |
| Machine weight | 204 kg |
| Max. sheet thickness | 39 mm |
| Stainless parts | Linear guide, pedestal, cover |
06 — Delivery
Shipped in a wooden box.

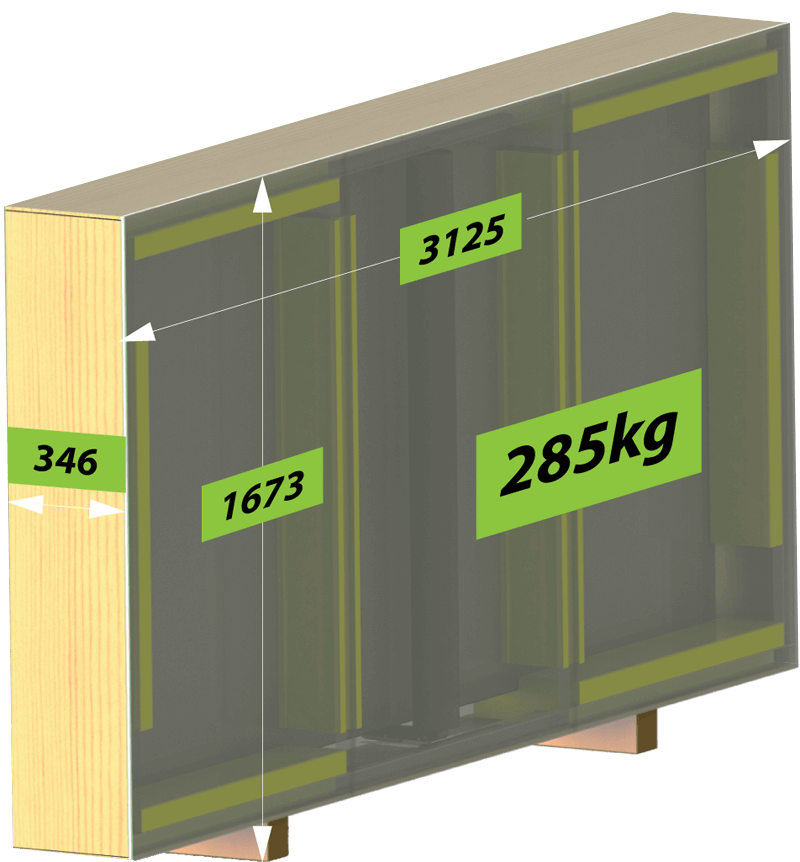

Every Compact travels safely in its own wooden box – 3125 × 1673 × 346 mm, 285 kg including the machine.

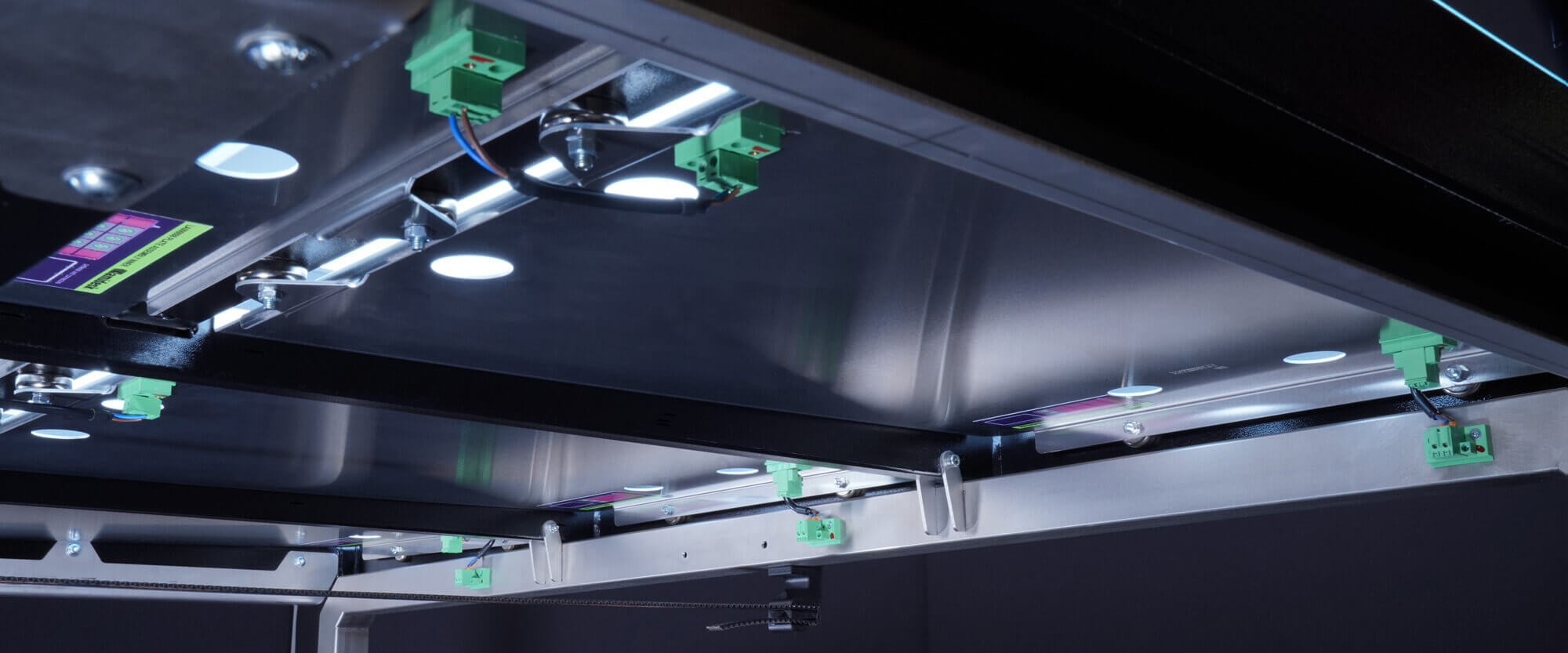

LED plates under glass
LED plates mounted under the glass table for easy alignment.

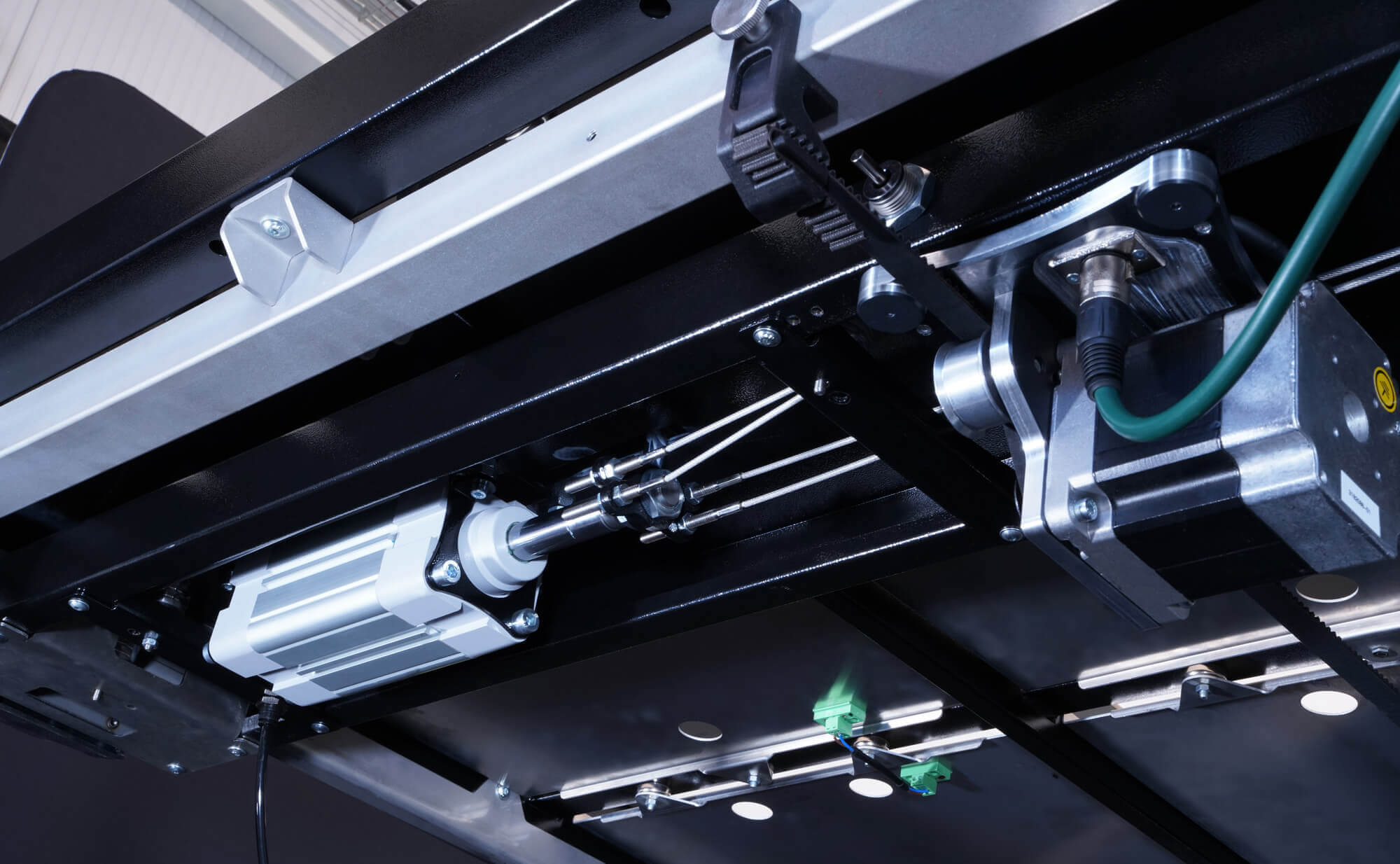

Motor & pneumatics
Drive and pneumatic components neatly mounted under the table.

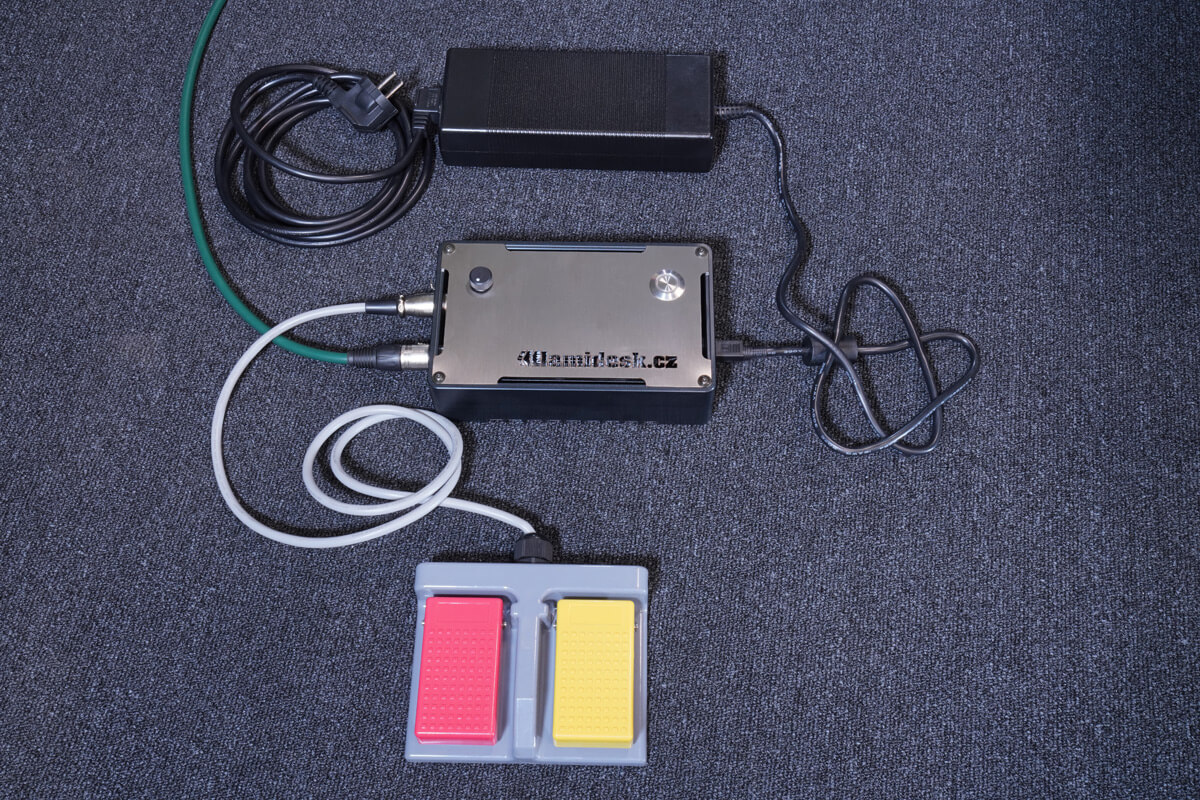

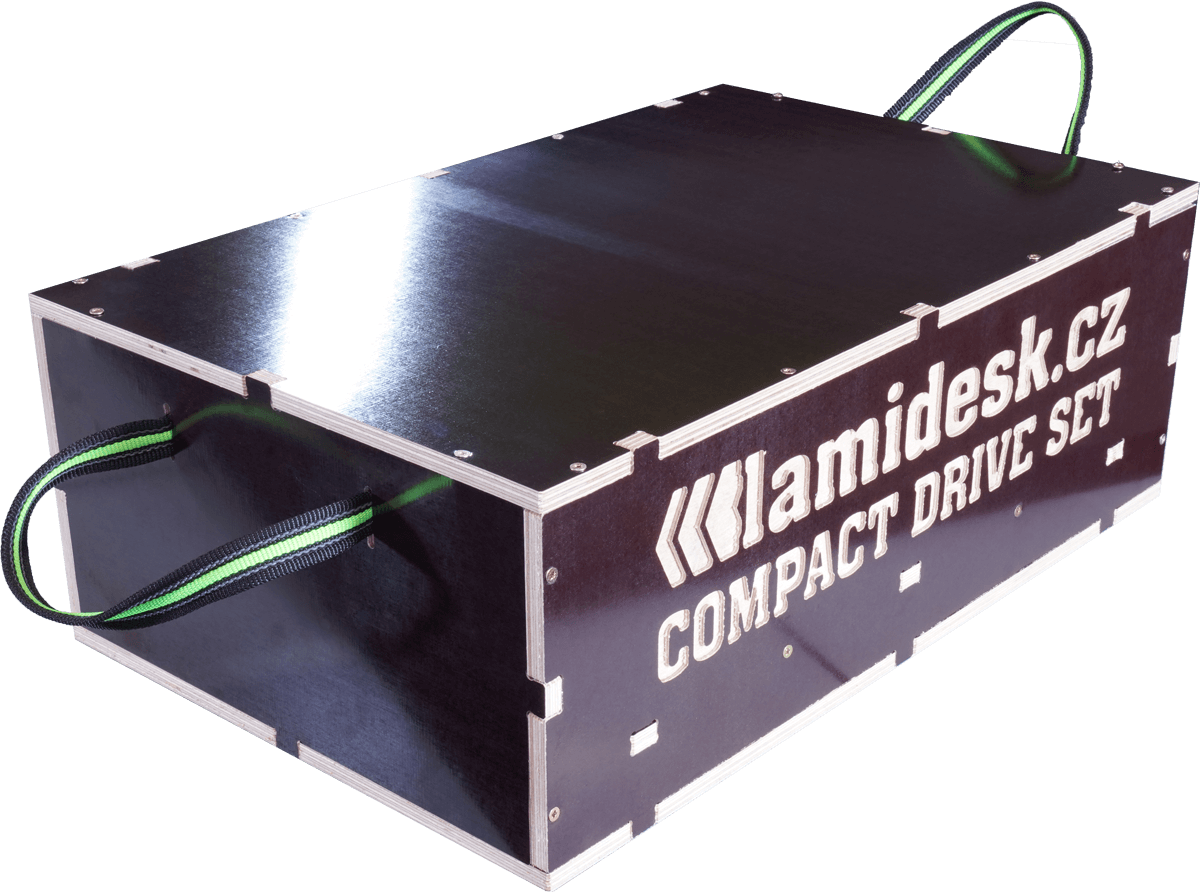

Compact drive set
Everything for the motor upgrade, delivered in one box.
