lamidesk

benefits

CNC industrial applicator

Created for the industry’s needs and built with a designer’s flair!

SuperSpeed

... enjoy the ride...

  • excellent ergonomics - incredible work speed
  • proportional metal foot pedal - three pre-set memory foot buttons
  • motorised set can by added to most of our machines by user in 20 min
  • SuperSpeed upgrade sets for original EasyShifts available
  • Use in SuperSpeed mode or alternatively in manual-driven mode
  • no electricity operation kit for machine available
img eu flag

DESIGNED AND MANUFACTURED IN CZECH REPUBLIC

img eu flag

loga

benefits

Don't work hard, Work Smart...

Motorized drive system, proportional foot switch and 6 up/down buttons for moving the roller, allow you to completely change the way you use a flatbed applicator. Using traditional tables, the operator works from the area in the middle of the table. With Lamidesk, we have designed everything to happen at the edge of the table . This work area is easily accessible for the operator and allows for mounting that is so quick and easy compared with manual models.

logo lamidesk

SuperSpeed

CNC industrial applicator

why motorised?

img evolves 01
img evolves 02

because works evolves...

why CNC ?, it is a revolution....

  • CNC control is the logical evolution of the motorised version, and causes a revolution...
  • CNC is normally used when some operations are repeatable and performed many times.
  • We found three positions which are used during each stroke on applicator.
  • CNC control can repeatedly achieve these programable positions fast, easily and exactly.
  • icon 1 start position of mounted sheet
  • icon 2 best position for removing liner and vinyl preparation
  • icon 3 end of the sheet or park position for easy material replacement
  • icon 01 UP/DOWN buttons
  • icon 02 proportional foot pedal
schema
img triangle

what can i do if something electronic went wrong?

This is sometimes a question associated with electronic devices. We designed this machine to be convertible to a fully manual-driven unit using the manual kit in just 2 minutes. In this mode the machine can be used without any electricity (including the UP/DOWN function).

BORN MOTORISED AND
UPGRADED TO CNC

extremely fast and relaible,
thanks to closed loop servo...

superspeed

PROPORTIONAL FOOT PEDAL

icon 1 icon 2icon 3

three foot buttons used for setting and moving to set positions

  • brushed stainless steel cover
  • stainless construction parts
  • milled and anodised aluminium; durable body and parts
  • HALL sensors inside for lifetime durability
  • two proportional pedals used for controlling forwards/backwards movement
PROPORTIONAL FOOT PEDAL

traverse the whole table, start to stop in 4.9 secs

pedal

BRUSHED STAINLESS STEEL END PANELS AND ACCESSORIES

Lamidesk
BRUSHED STAINLESS STEEL
BRUSHED STAINLESS STEEL

DEATHLESS LINEAR GUIDE

double bearings increase machine durability and prolong life...

DEATHLESS LINEAR GUIDE
Lamidesk

BRUSHED STAINLESS STEEL END PANELS AND ACCESSORIES

incl. biggest 400/210 and 500/160 models

END-POSITION HYDRAULIC SHOCK ABSORBERS AND ACCESSORIES

They optimize machine performance in a reliable and effective manner by decelerating the roller at the table ends quickly and without recoil.

img absorbers

APPLICATION ROLLER FROM GERMANY

Our perfectly manufactured roller using a CNC brush machine, German rubber and German precision will help you in your work every day. The roller is the key component on a flatbed applicator. Consequently, this part needs to be accurate, durable and easy to maintain. Our rollers are alcohol, oil and abrasion resistant, resulting in excellent lifespan and simple maintenance procedures.

Bottcher Systems

APPLICATION ROLLER FROM GERMANY

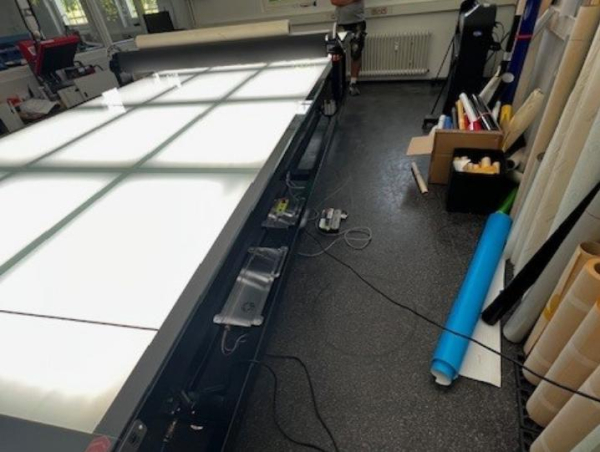

SuperSpeed LED set

...more than 680W LED power, over 8,400 LED chips

The backlight set can be added to any SuperSpeed machine at any time, by the user and in only a few minutes - no tools needed.
All aluminium plates and power box include magnetic holders for easy click-in/click-out mounting and disassembly.
An incredible 680 watts of LED power adds another dimension to your work. Takes the stress out of the alignment process!

Set includes: LED plates (quantity depends on machine size , all connection wiring, power supply unit Installation = 15 minutes, no technician needed!

img SuperSpeed LED set

Each SuperSpeed frame is factory pre-wired and fitted with connectors...

img triangle
img welded steel frame

WELDED STEEL FRAME

extremly stable and durable extremely stable and durable

We start with steel tubing which is cut using lasers for 100% accuracy. Then, the parts are welded into a massive steel frame which is powder coated for a superior protected finish.

We utilise two separate frames, this allows us to maintain a perfectly flat table even under roller pressure. Each section of the machine is individually calibrated using precision measuring instruments.

img welded steel frame

img logo home lamidesk2

Technical data

Compressed air

Compressed air - consuption

6 bar - 4 l/min.

Power consumption

Power consumption

SuperSpeed manual SuperSpeed drive LED backlight 300/160 400/210 heating
20W 400W 456W 686W 1500W
Voltage: 300/210 500/160
single-phase 240V 547W 486W
400/160
571W

Dimension & weight

Dimension & weight

Default maximum sheet thickness 70mm - optionally up to 300mm

Dimension & weight

AVAILABLE ACCESSORIES COLORS

AVAILABLE ACCESSORIES COLORS

Default color of frame - RAL 9005 - BLACK, structured.
Colorful accessories are available in MACal 8300 PRO color definition. We recommended to choose according to MACal Colour card or
http://www.mactac.eu/products-macal-8300-pro-1-11--21.htm

SuperSpeed

MACHINE MODELS

each SuperSpeed frame is motor ready...
The Drive can be added to any
SuperSpeed machine at any time.

img triangle

AVAILABLE ACCESSORIES COLORS

each SuperSpeed frame is factory
pre-wired and fitted with connectors...
The backlight set can be added to any
SuperSpeed machine at any time.

img triangle

Lamidesk

Lamidesk

Compact CL 2019

  • machine perspective
    benefits

    CARBON FIBRE COVER DESIGN
    BRUSHED STAINLESS STEEL PARTS
    COVERED LINEAR GUIDE
    END POSITION HYDRAULICS
    SHOCK ABSORBERS

    MOTOR & LED BACKLIGHT AVAILABLE

    flag eu

     DESIGNED AND MANUFACTURED IN CZECH REPUBLIC

    flag de

     APPLICATION ROLLER

    flag it  flag jap

     PNEUMATIC COMPONENTS

    loga 01
  • Compact CL 2019 flatbet applicator

  • compact img 01
  • optional motor drive set available

    electric accesories

    A powerful motor gives your applicator another dimension. This dimension is efficiency. We have one decade’s experience with motorised machines. Our customers appreciate the ease-ofuse, rapid application and excellent results.

    The motor set can be added to any Compact CL2019 machine at any time, by the user and in only a few minutes. motor + flatbed applicator = more speed, ease-ofuse and great results

    compact set box
  • compact img 02
    LED BOx 1 2

    The backlight set can be added to any Compact CL2019 machine at any time, by the user and in only a few minutes - no tools needed. All 15 aluminium plates include magnetic holders for easy click-in/click-out mounting and disassembly. An incredible 280 watts of LED power adds another dimension to your work. Takes the stress out of the alignment process!

    Set includes: 15 LED plates, all connection wiring MeanWell power supply 280W 24V

  • compact img 03
  • precision guide, fits perfectly

    Single metal bearings rolling directly on the guide surface are a poor manufacturing solution. We don’t do this! Each Compact pulley contains two precision bearings encased in a protective housing. This results in amazing durability, extreme accuracy and much longer machine life....

    compact img 04

    application roller from Germany

    Our perfectly manufactured roller using a CNC brush machine, German rubber and German precision will help you in your work every day. The roller is the key component on a flatbed applicator. Consequently, this part needs to be accurate, durable and easy to maintain. Our rollers are alcohol, oil and abrasion resistant, resulting in excellent lifespan and simple maintenance procedures.

    logo bottcher
    compact img 05
  • convex table surface & CNC brushed convex roller

    compact img 06

    Perfectly flat when roller is lowered - this is the key to a reliable applicator.Our (patent pending) solution using two internally embedded beams gives incredible reliability and stability to the table...

    folding legs

    compact img 07

    Folding legs make the initial assembly quick and easy. The Compact canbe moved from one room to another in just a few minutes. Optional shelvescan be easily added thanks to pre-threaded mounting points.

  • machine footprint, working area

    compact img 08

    stainless parts

    compact img 09

    wooden box

    compact img 10

  • compact img 11
  • TWO END POSITION HYDRAULIC SHOCK ABSORBERS

    compact img 12

    They optimize machine performance in a reliable and effective manner by decelerating the roller at the table ends quickly and without recoil.

  •

    SuperSpeed upgrade kit for Easy Shift

    situable for almost each Easy Shift, for more info send us S/N of the machine... or look under table, if you can see three induction sensors ( each has red LED diod) . When fitted on the gantry is machine upgradible. Upgrade set is applicable using standard tool, no drilling needed. Estimated time for installation 20 min.

    upgrade kit easy shift 01

    what you get:
    incredible works speed, improved ergonomy
    excelent metal proportional foot pedal - three memory foot buttons

    upgrade kit easy shift 02
